MyGrid 10K Gen 2 Solar and Wind Generator | 10,000W Continuous | 10.5 kWh LiFePO4 | Whole-Home

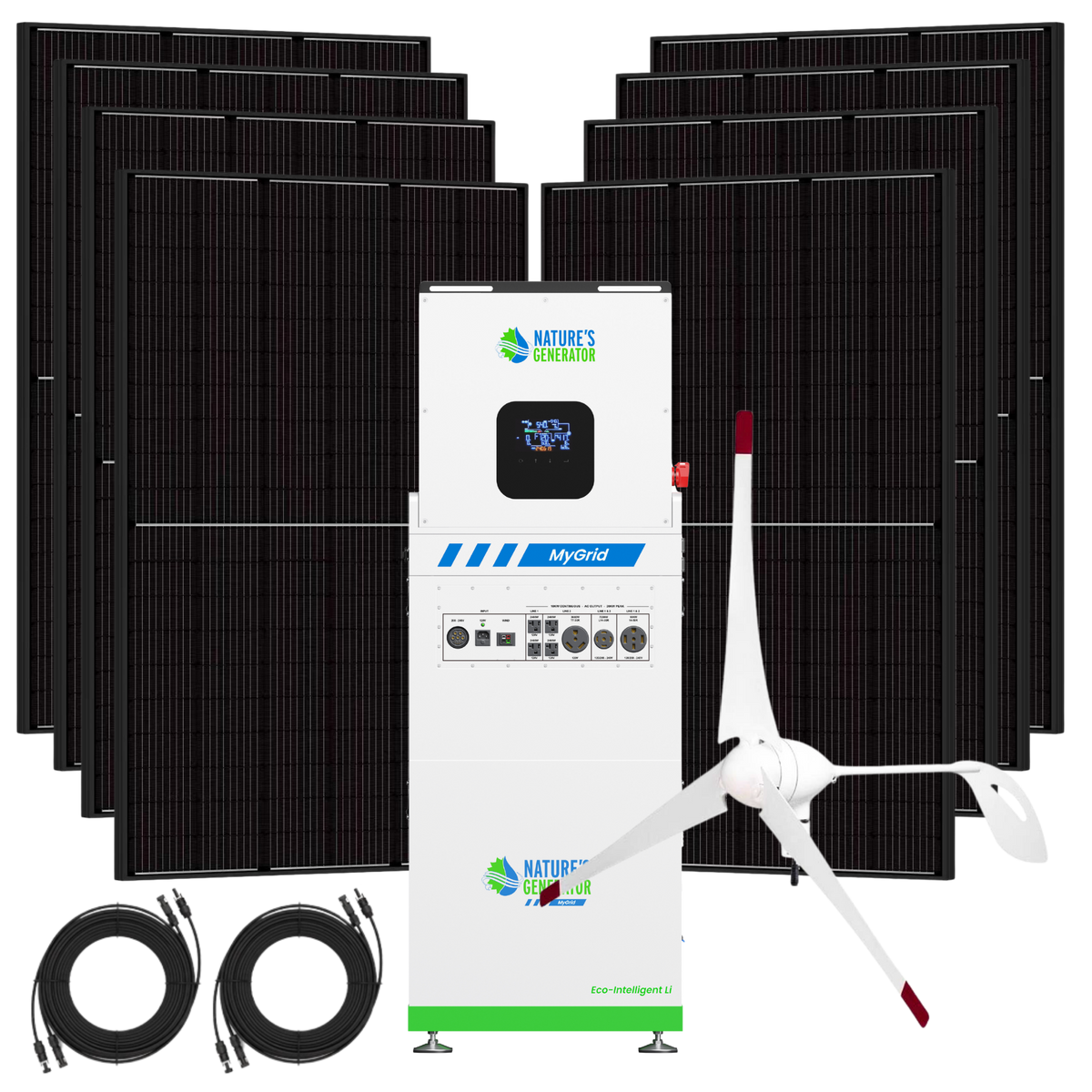

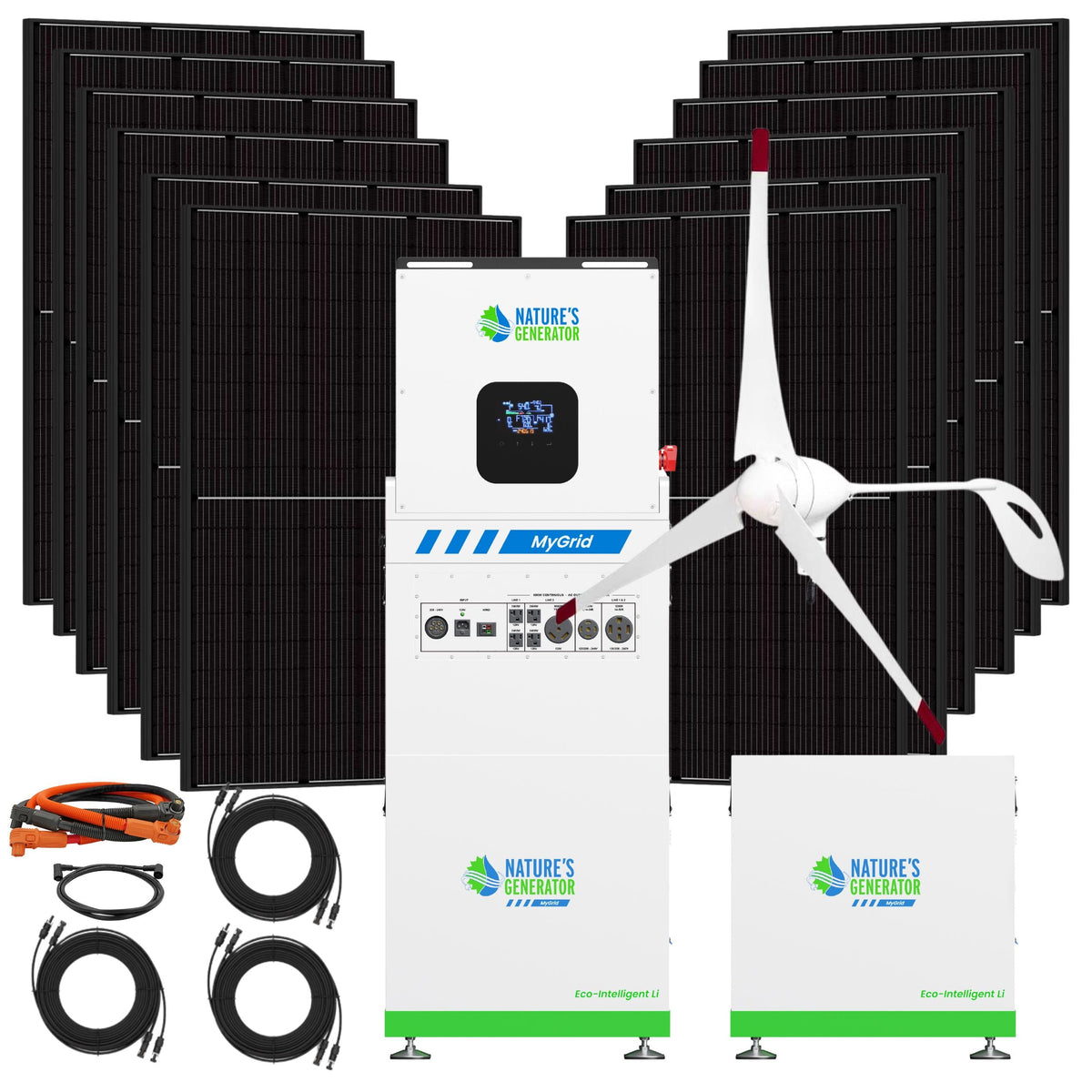

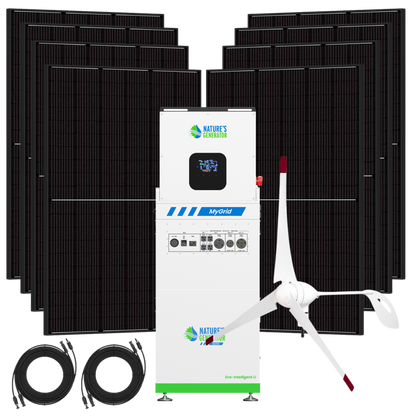

The MyGrid 10K Gen 2 Solar and Wind Generator is a whole-home base power station delivering 10,000 watts of continuous pure sine wave output (5,000W per leg, 120V/240V split-phase) with a 20,000W surge capacity for heavy inductive loads. Its modular 10,496 Wh (10.5 kWh) LiFePO4 base tray is rated for more than 6,000 charge/discharge cycles — approximately 16+ years of daily cycling. Dual internal MPPT solar charge controllers handle up to 12,000W of total solar input (120VDC–550VDC), and a dedicated internal wind turbine controller accepts 350W–999W wind inputs, enabling true multi-source renewable charging from a single integrated unit. The system scales to approximately 74 kWh total capacity via up to 6 expansion batteries, and two complete MyGrid 10K units can be paralleled for 20 kW of continuous output.

Why This Whole-Home Generator

• 10,000W continuous pure sine wave output — 5,000W per leg on a 120V/240V split-phase configuration; compatible with standard whole-home load center wiring for critical circuit backup or full-home coverage.
• 20,000W surge capacity — handles the high inductive starting spikes of heavy tools, well pumps, HVAC compressors, and other motor-driven equipment without tripping.
• 6,000+ cycle LiFePO4 battery — the 10.5 kWh modular base tray retains 80% capacity after more than 6,000 cycles, translating to approximately 16+ years of daily use before capacity degrades below 80%.
• Dual MPPT solar controllers + wind turbine controller — accepts up to 12,000W of total solar input across a wide 120VDC–550VDC input range, plus a dedicated internal controller for 350W–999W wind turbine input; genuine dual-renewable charging in a single unit.
• Scalable to ~74 kWh — up to 6 additional MyGrid expansion batteries can be added to the base system, and two full MyGrid 10K units can be paralleled for 20 kW continuous output.

Key Features

• Continuous output — 10,000W pure sine wave (5,000W per leg, 120V/240V split-phase)
• Surge/peak output — 20,000W
• Base battery capacity — 10,496 Wh (10.5 kWh) modular LiFePO4 base tray
• Battery cycle life — >6,000 cycles (~16+ years daily cycling)
• Solar input — dual internal MPPT controllers; up to 12,000W total (120VDC–550VDC)
• Wind input — dedicated internal wind turbine controller; 350W–999W
• Scalability — up to 6 expansion batteries (~74 kWh max); parallel 2 units for 20 kW continuous

Specifications

Installation Notes

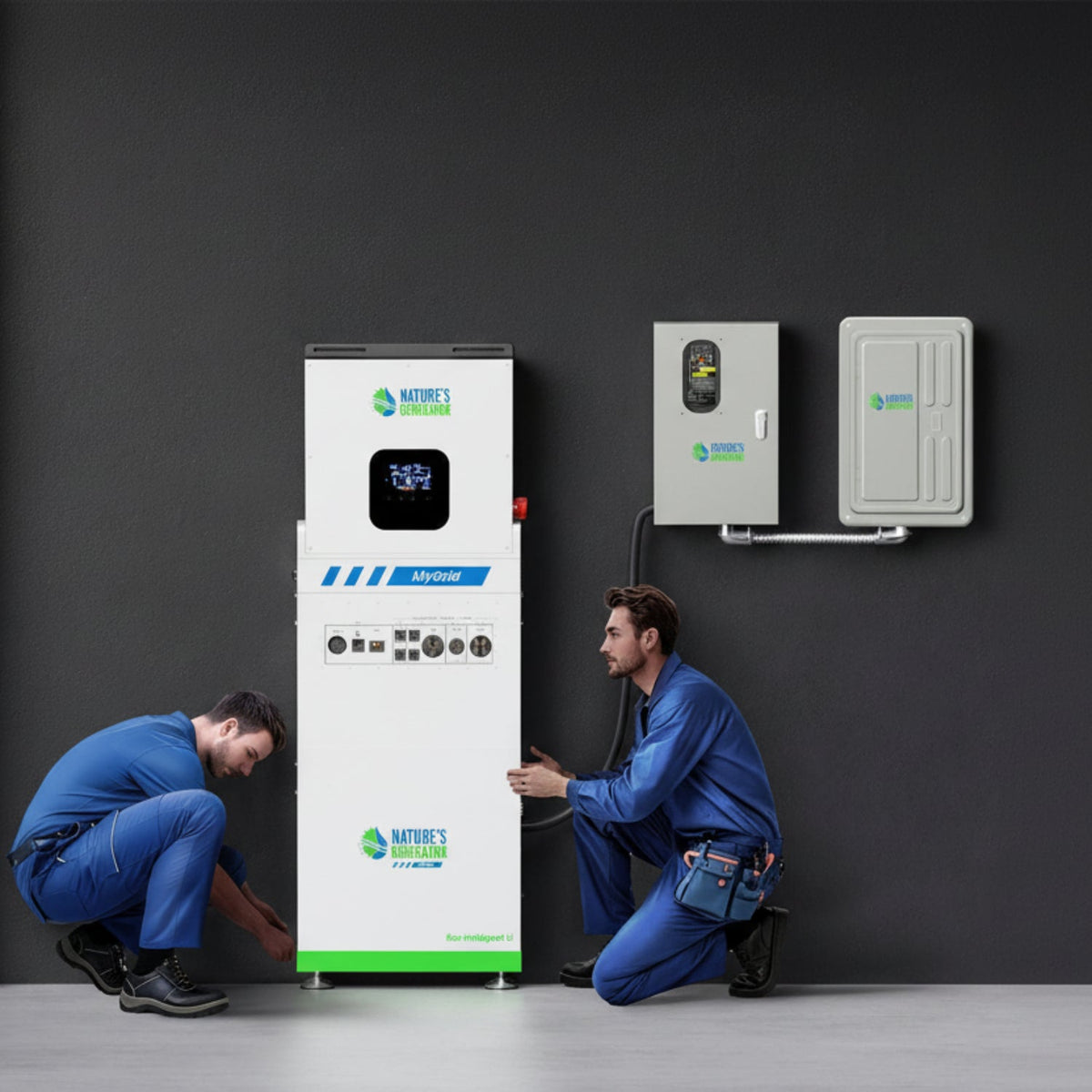

• Split-phase 120V/240V output — requires connection to a compatible load center or transfer switch panel by a licensed electrician. Not a plug-and-play unit for whole-home integration.

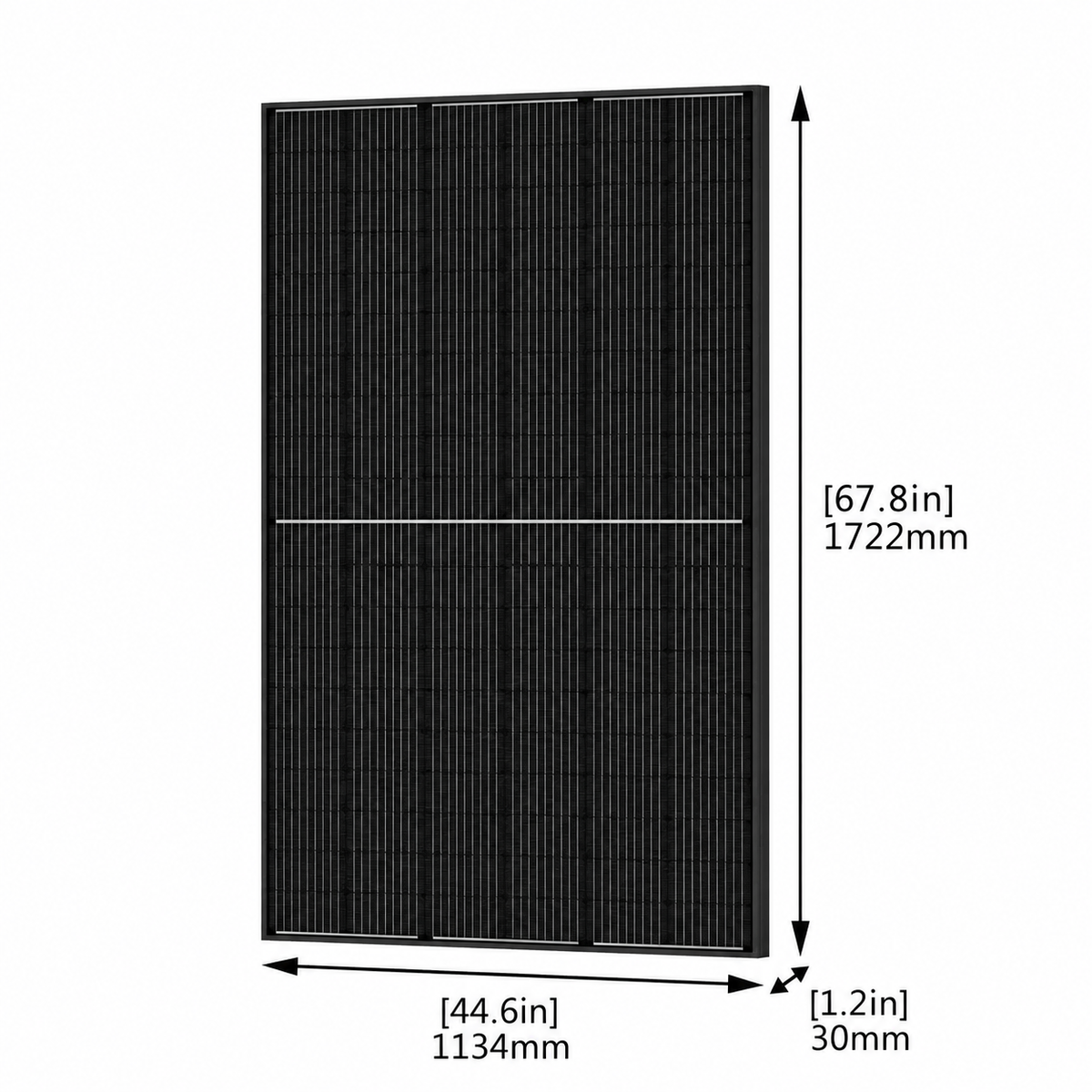

• Solar array wiring — input voltage range is 120VDC–550VDC; panel array must be configured within this range. Consult a licensed solar installer for array sizing and wiring.

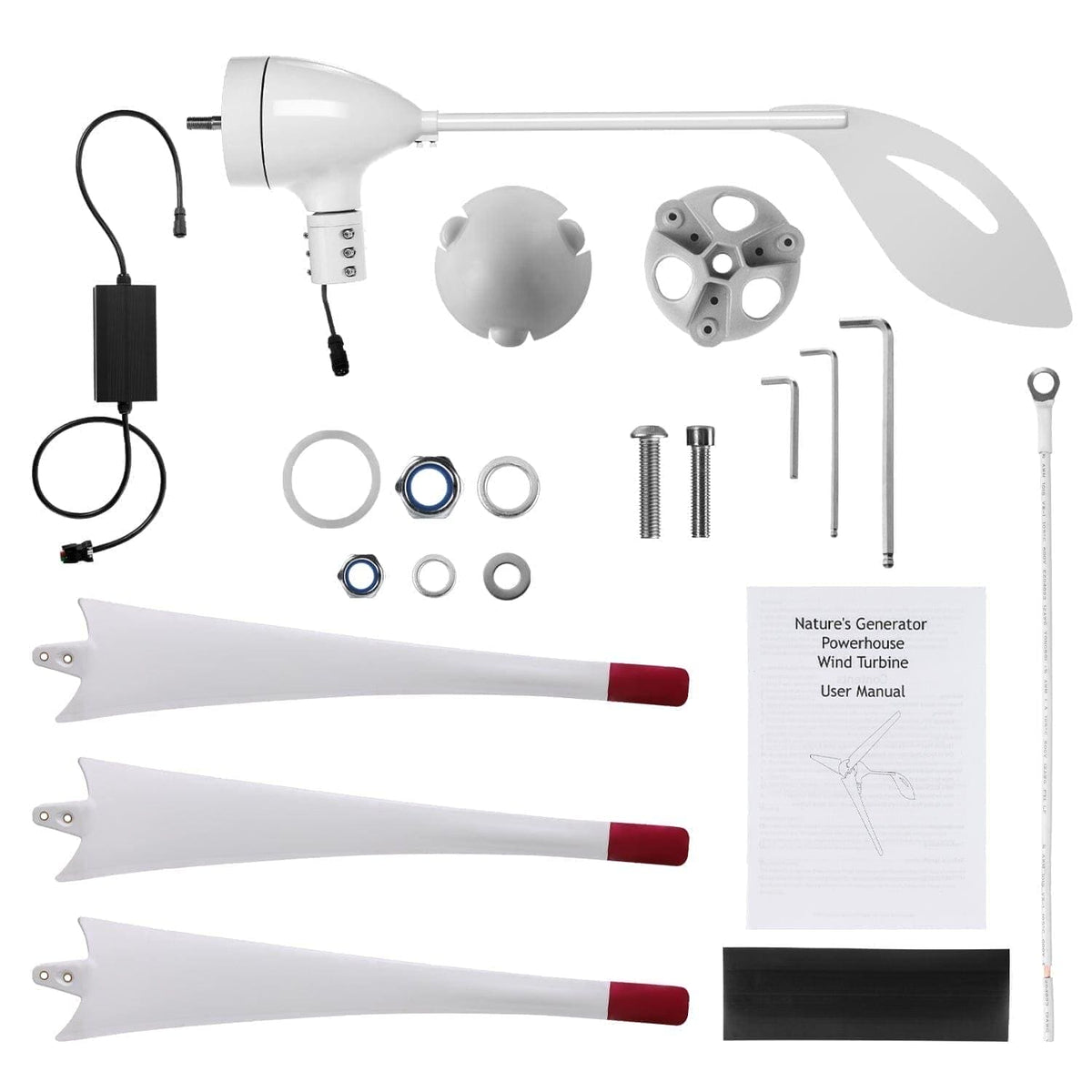

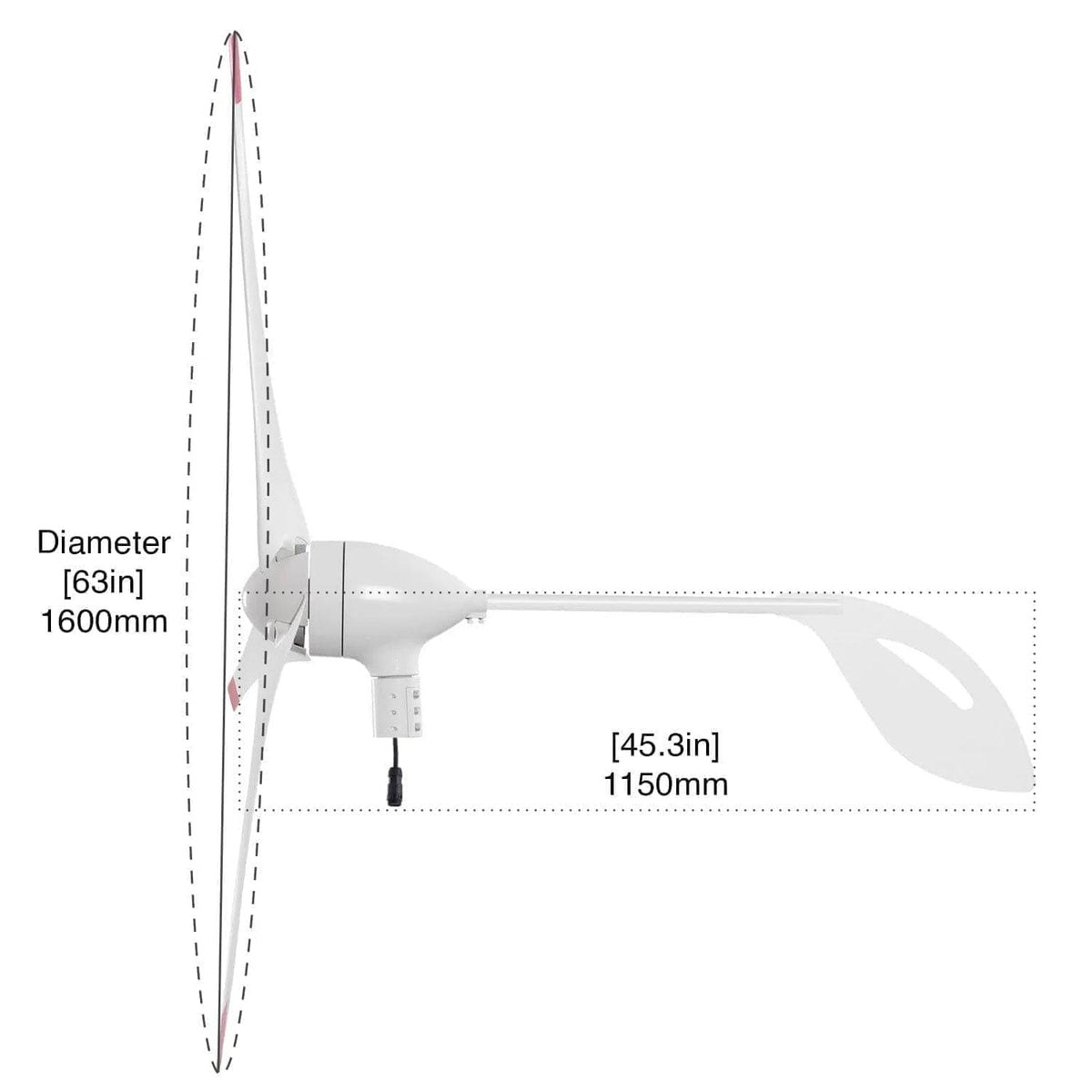

• Wind turbine connection — the dedicated internal wind controller accepts 350W–999W turbine inputs; turbine selection and installation must comply with local codes.

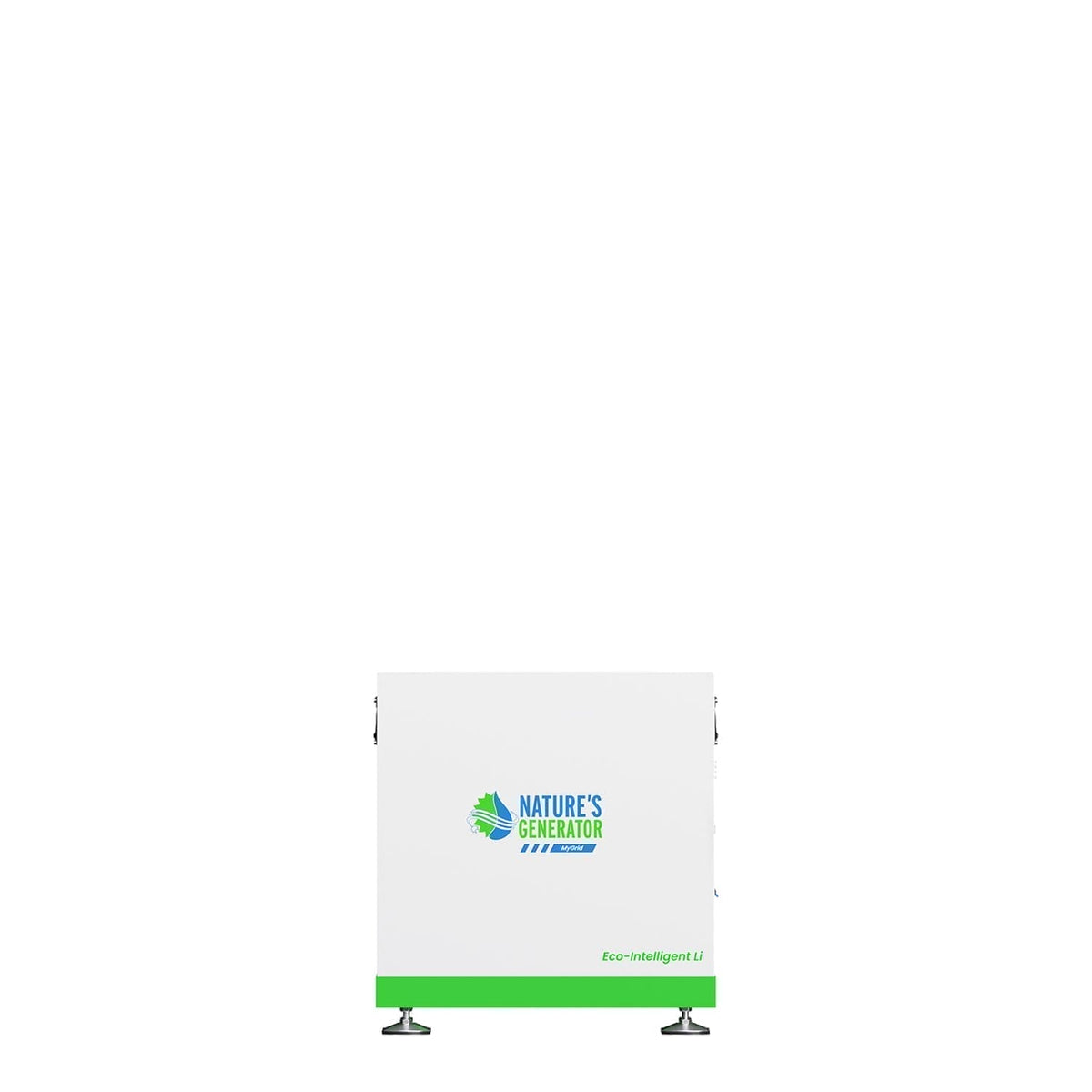

• Expansion batteries — up to 6 MyGrid expansion batteries can be added; verify compatibility with the specific expansion battery model before purchasing.
• Parallel setup — paralleling two MyGrid 10K Gen 2 units for 20 kW output requires compatible parallel connection hardware; consult MyGrid documentation for requirements.

Shipping & Warranty

• Shipping: Free standard freight shipping to the Continental U.S. (excludes AK/HI). Estimated delivery: 6–11 business days. Due to unit size and weight, delivery is freight/curbside. See our Shipping Policy for full details.
• Damage: Inspect all items at delivery before signing. Report any damage within 48 hours to support@luxuryzenliving.com with photos.
• Returns: 30-day return window. Item must be unused and in original packaging. Non-defective returns subject to a 25% restocking fee and customer-paid return freight. See our Return Policy for full details.
• Warranty: Please refer to the MyGrid warranty documentation included with your unit or contact support@luxuryzenliving.com for warranty terms and coverage details.

Common Questions

Can this power an entire home?
Yes, with proper installation. The MyGrid 10K Gen 2 outputs 10,000W continuous (120V/240V split-phase), which covers most whole-home critical load circuits when connected via a compatible transfer switch or load center by a licensed electrician. Total coverage depends on your home’s load profile.

What is the difference between the solar and wind inputs?
The unit has two separate internal charge controllers: dual MPPT controllers handling up to 12,000W of solar input (120VDC–550VDC), and a dedicated wind turbine controller rated for 350W–999W wind inputs. Both can charge the battery simultaneously from independent renewable sources.

How much can I expand the battery capacity?
The base system includes 10.5 kWh. Up to 6 additional MyGrid expansion batteries can be connected, bringing total system capacity to approximately 74 kWh. Two complete MyGrid 10K Gen 2 units can also be paralleled for 20 kW of continuous output.

How long will the battery last with daily use?
The LiFePO4 base tray is rated for more than 6,000 full charge/discharge cycles to 80% capacity — approximately 16+ years of daily cycling under typical conditions.
